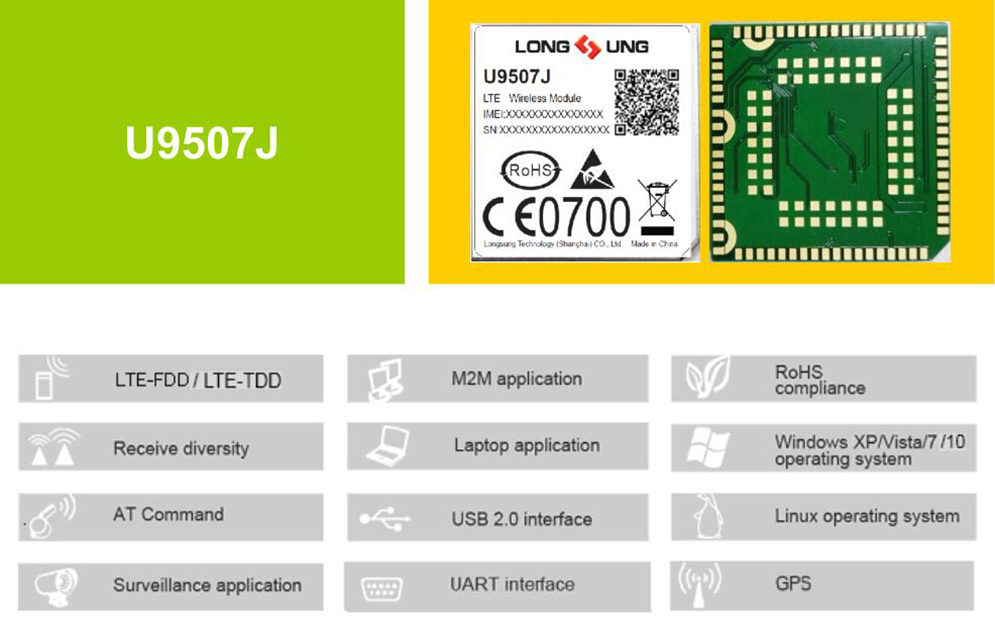

U9507J is a wireless module which is designed for the global market. It is a consumptive product; It can
be designed in many kinds of applications which can work on LTE-FDD/LTE-TDD/UMTS/GSM/GPS/
GLONASS (Optional) network.
On LTE network, U9507J enables connect to the Internet at DL data speed up to 150Mbps and UL data
speed up to 50Mbps, in the area where LTE service are not available, U9507J still enables reliable and
secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507J provides SMS, MMS, Phonebook functions as well as high speed access, and also audio
function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet,
Electric-book, MID, Vehicle equipment, etc.
U9507J is a wireless module which is designed for the global market. It is a consumptive product; It can
be designed in many kinds of applications which can work on LTE-FDD/LTE-TDD/UMTS/GSM/GPS/
GLONASS (Optional) network.
On LTE network, U9507J enables connect to the Internet at DL data speed up to 150Mbps and UL data
speed up to 50Mbps, in the area where LTE service are not available, U9507J still enables reliable and
secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507J provides SMS, MMS, Phonebook functions as well as high speed access, and also audio
function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet,
Electric-book, MID, Vehicle equipment, etc.
Specifications for data:
• Support Release 9 Category 4
• LTE-FDD up to 150 Mbps DL,50 Mbps UL
• LTE-TDD up to 150 Mbps DL,50 Mbps UL
• DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
• EDGE up to 237Kbps DL,118Kbps UL
• GPRS class 10: 85.6kbps DL,85.6kbps UL
• CSD up to 14.4 kbps
• Transparent mode
• PBCCH support
• PPP-stack
• Coding schemes CS 1,2,3,4
• FOTA
• TCP/IP
• NDIS
Band Configuration:
U9507J:
• LTE-FDD Band 1/3/8/18/19/26/28
• LTE-TDD Band 38/40/41
• UMTS Band 1/5/8/19
• GSM Band 3/8
Specifications for SMS:
• Point-to-point MO and MT
• SMS cell broadcast
• Text and PDU mode
Interfaces:
• Power supply
• USB 2.0 high speed
• UICC/SIM/UIM interface 3 V / 1.8 V
• UART
• PCM
• Antenna interface
• HSIC
Additional features:
• VoLTE
• Phone book
• PCM
• DTMF
Approvals:
• RoHS
• CE
• GCF
